Crimp contacts

Crimp contacts

High conductivity copper alloy crimp contacts for male and female connectors. All Power contacts are silver-plated. Signal and Ethernet contacts are gold-plated.

SGH Tool for modules insertion

SGH Tool
for modules insertion

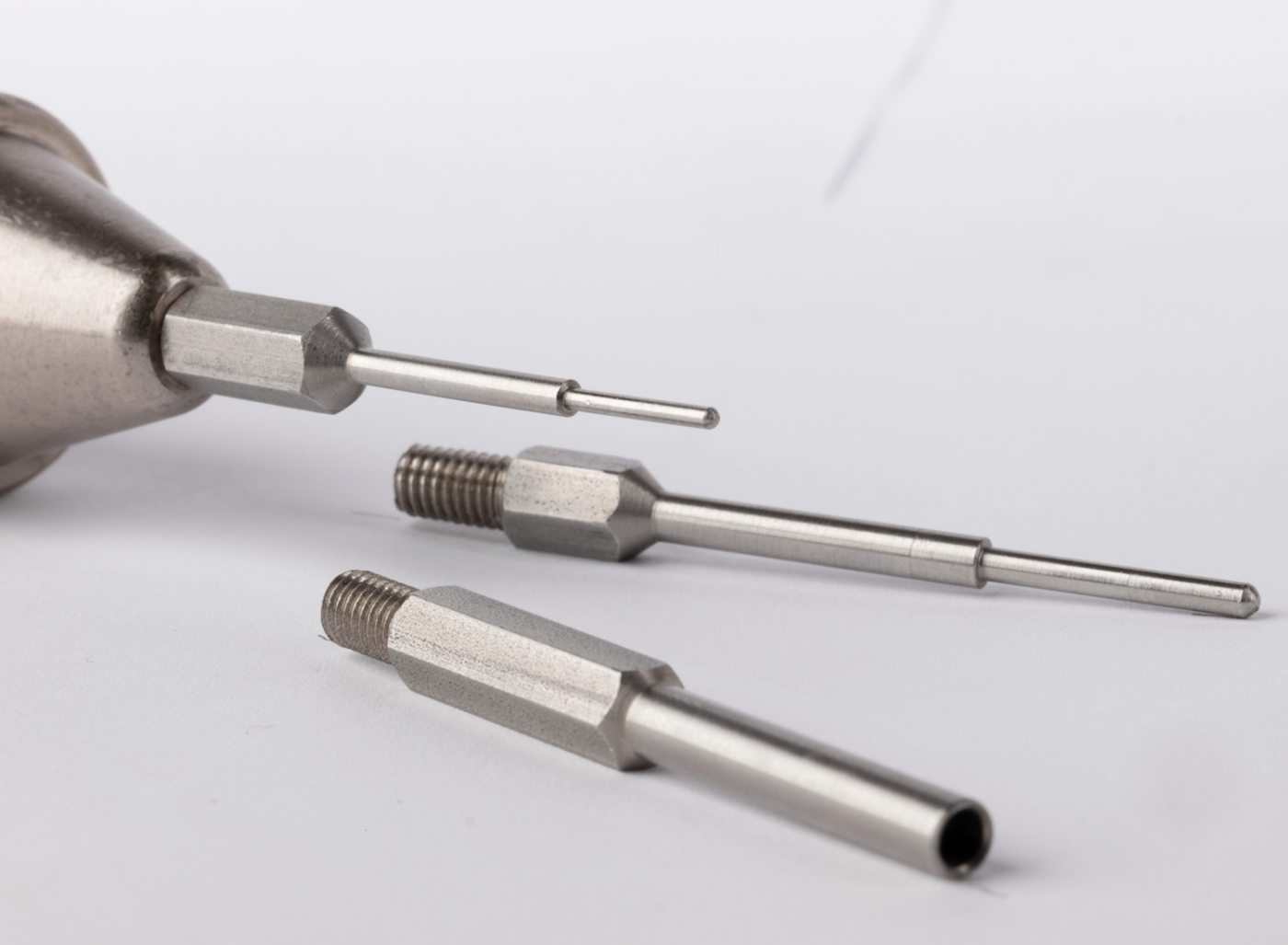

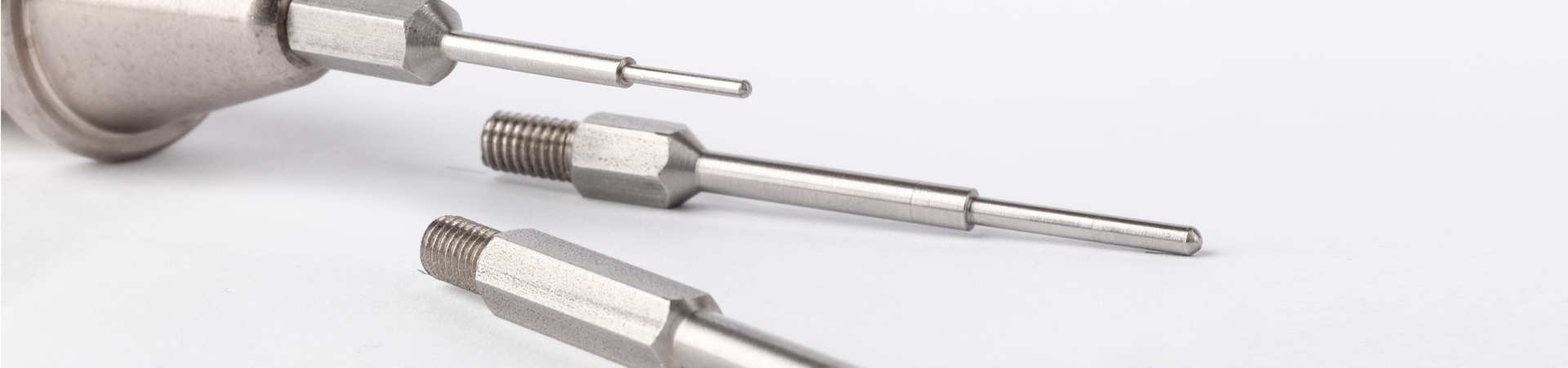

A specific tool allows to insert the contacts easily inside the modules. On the tool, there are two housings on the front for DATA/SIGNAL MODULES, and a housing on both the top and the bottom for the central insert and CORE SHELL (one of the housings is for the 8.1 model, the other is for the 16.1 model). For correct usage of the tool, clamp it on a vise.

Part No. SGH-TLA

Hydraulic crimping tool 45kN

Hydraulic crimping tool 45kN

Lightweight and compact, this tool is ideal to crimp connectors on overhead lines and general electric applications. Thanks to spring loaded handles, you can use the tool and crimp contacts with just one hand, with the other hand free to position the connector. For easier operations, the tool head can be rotated by 180 degrees. The built-in safety valve will bypass the oil supply when the maximum pressure is reached. The pressure release system can be easily operated at any stage of the compression.

Part No. SBH-CRIMP-A

Manual crimping tool

Manual crimping tool

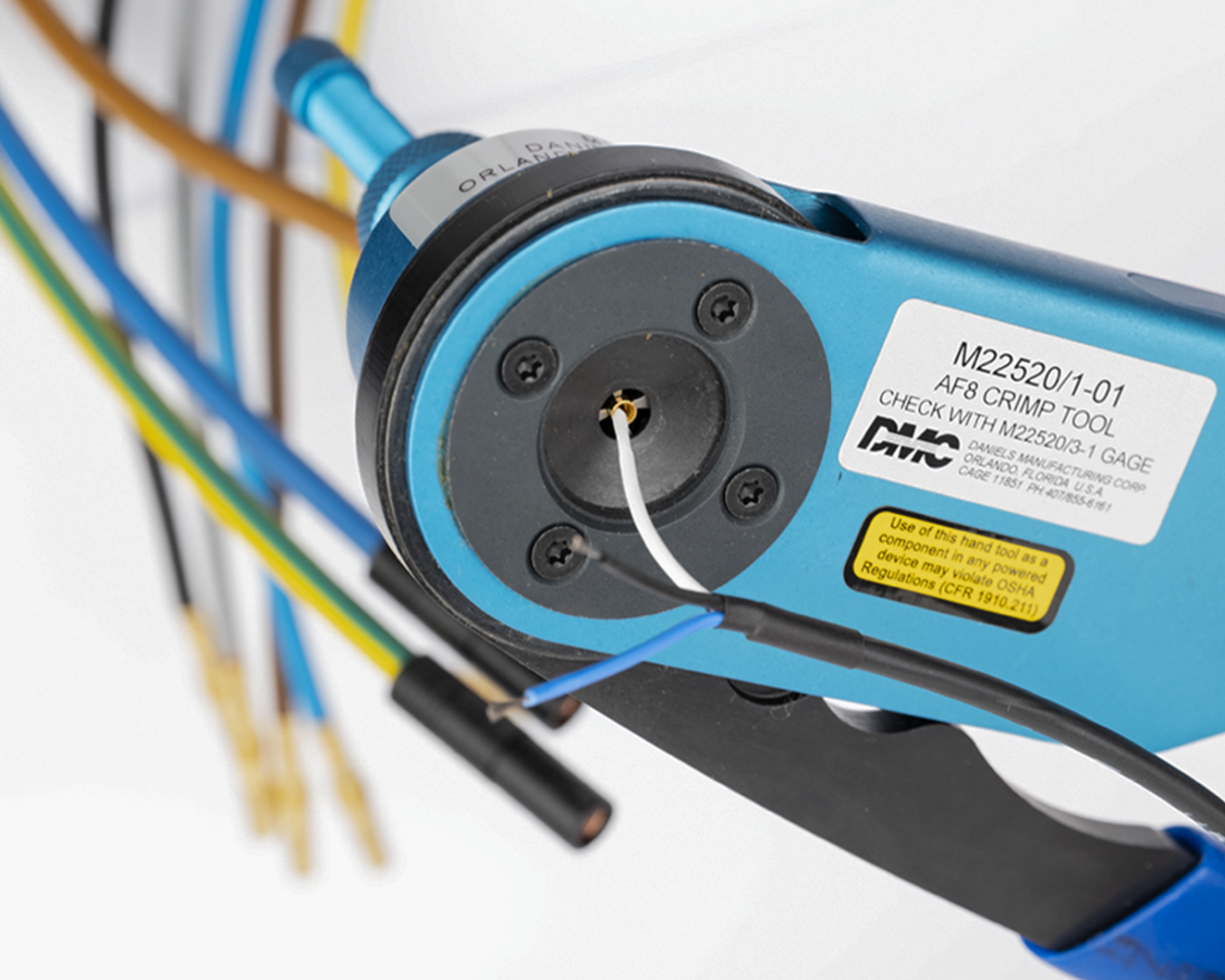

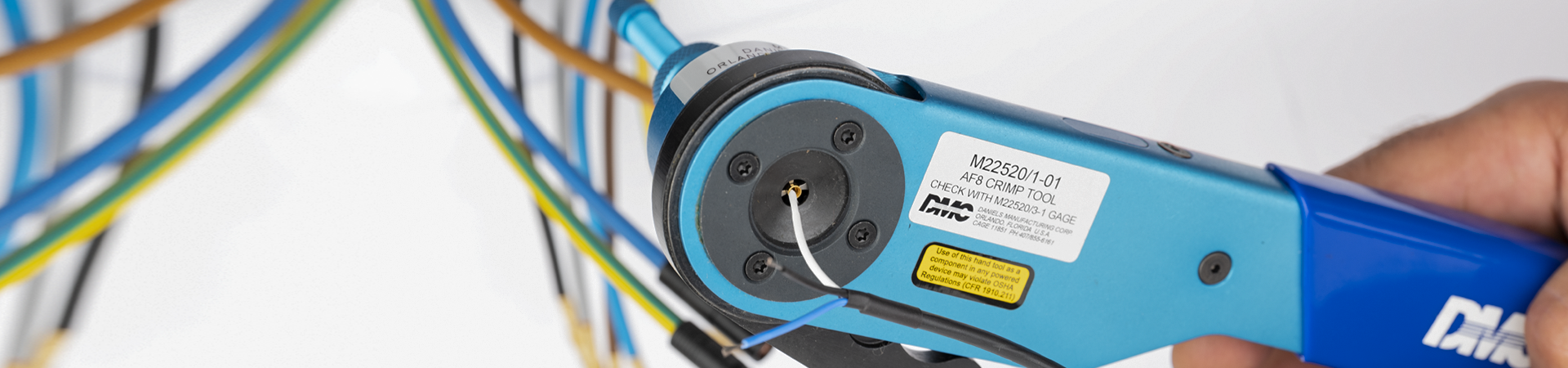

The manual crimping tool AF8 is compliant with MIL-DTL-22520/1 and AS22520/1. It is suitable for all wire gages from 12 to 26 AWG. The 8-point crimping of the AF8 tool ensures maximum strength and resistance on the crimped connection. Special indent configurations and gaging are available on request. For proper operation, the tool must be used with a military standard turret positioner. The turret is easily fitted on the crimping tool by orienting the head in the keyed position, and by tightening the hex socket screws supplied with the turret. The precision ratchet controls cycling of the tool in both directions of handle movement. This ensure the same accurate crimp every time. Positive crimp depth is controlled by an 8 position selector knob conveniently located on the tool frame. The operator will just need to select the setting for the wire being used. The setting can be secured by use of a locking pin or safety wire. Periodic gaging is recommended to ensure accurate calibration. Other than keeping the unit clean and properly stored when not in service, no operator maintenance is required.
