Syntax Gigamod Hybrid 16.1 modular inline connector

SGH 16.1 inline

Take your hybrid connections
to the next level.

16 modules + power or signals

SGH 16.1 inline

Take your hybrid connections
to the next level.

16 modules + power
or signals

Syntax® Wireasy technology

  • Raising the bar
    on hybrid connections

    Raising the bar
    on hybrid connections

  • We redefined hybrid so you could redefine
    your cable management

    We redefined hybrid so you could redefine your cable management

    Syntax® SGH is in many ways a flagship Syntax product. It has undoubtedly the form and size of a simple circular connector, but more than that it is a multiconnectivity device concealed in a heavy duty shell, a quick-connection tool containing as many as 16 contact pair modules for signals plus a central insert for power up to 32amp or up to 4 additional signal channels. SGH 16.1 is a real showcase of our engineering capabilities, a heavy duty product that raises the bar on the future of multipurpose hybrid connections while ensuring the total reliability, high quality and perfect ergonomics every Syntax customer expects of our products. With the plus of Syntax Wireasy technology, that allows super-easy and fast wiring with no special assembling tools needed.


    Syntax SGH 16.1 signal modules and power inserts
  • Less is more

    Less is more

    Less complication and fewer cables, our pursuit of practicality

    Less complication and fewer cables,
    our pursuit of practicality

    Syntax® SGH 16.1 inline connectors have been designed with practicality for assemblers and users as the main goal. From the initial conception to the first draft stages and subsequent developments, our engineering team has pursued a practical solution where, thanks to our proprietary Syntax Wireasy technology, each component has been thoughtfully designed to make your work easier. Easier wiring without any special assembling tools needed. Easier cable management as everything you need will be on a single cable. Syntax® SGH is professionalism within everyone's reach.

    SGH 16.1 core shell, blank insert and outer capsule
  • Worried about wiring?

    Worried about wiring?

    Take it Wireasy

    Take it Wireasy

    SGH is designed to be quick

  • We know your time is valuable. That's why we made the SGH series with a special focus on assembling and wiring simplicity. Forget those complex procedures needed for other hybrid connectors. Our SGH has been designed for fast and easy assembling.

  • Available modules and contacts

    Available modules
    and contacts

    Explore the possibilities of a fully modular connector

    Explore the possibilities of a fully
    modular connector

    Add power or signals. A complete range of modules are currently available, and any of them can be fitted on any version of the SGH connectors series.

    Available modules and contacts
  • Use cases

    Use cases

    Syntax® SGH 16.1

    Syntax® SGH 16.1

    Use cases

    The best of all possible worlds
    All in one cable management with modules for Ethernet, HDMI, USB3 + Power or Signal

  • Application fields

    Application fields

  • The versatility of a fully hybrid and modular connector

    The versatility of a fully hybrid and modular connector

    The versatility of a fully hybrid
    and modular connector

    So many ways to improve your work

    So many ways to improve your work

    Imagine the limitless applications of a multimodule connector for Ethernet/HDMI/USB3 signals also carrying a central module for power or additional signals. Check out the application fields page for a few examples. And for more possibilities… no one knows your business like you do.

  • Syntax safe tunnels

    Syntax safe tunnels

    Protection from external noise
    Insulation between signal conductors

    Protection from external noise
    Insulation between signal conductors

    Syntax safe tunnels
  • Syntax safe tunnels crosstalk barrier
  • Protection from external noise,
    insulation between signal conductors

    Protection from external noise,
    insulation between signal conductors

    The Syntax Safe Tunnels are the key elements creating a controlled environment inside the SGH connector, an interference-free area where the non-twisted pairs are channeled and kept free from interferences.

  • Shield propagation

    Shield propagation

    Discover the highlights of a new philosophy of shielding

    Discover the highlights of a new
    philosophy of shielding

    Shield propagation

    Discover all the elements that give shape to an ingenious shielding solution. A new philosophy for shield propagation from cable to cable, as if there were no connectors at all…

  • Exploded view

    Exploded view

    Syntax SGH 16.1 modular hybrid connector exploded view
  • Metric cable glands

    Metric cable glands

    Metric cable glands

    Metric thread cable glands allow more versatility compared to PG or other thread types. All cable glands supplied with the Syntax Gigamod Hybrid connectors provide IP68 rating at the back of the connectors.

  • Metric cable glands

    Metric cable glands

    Metric cable glands

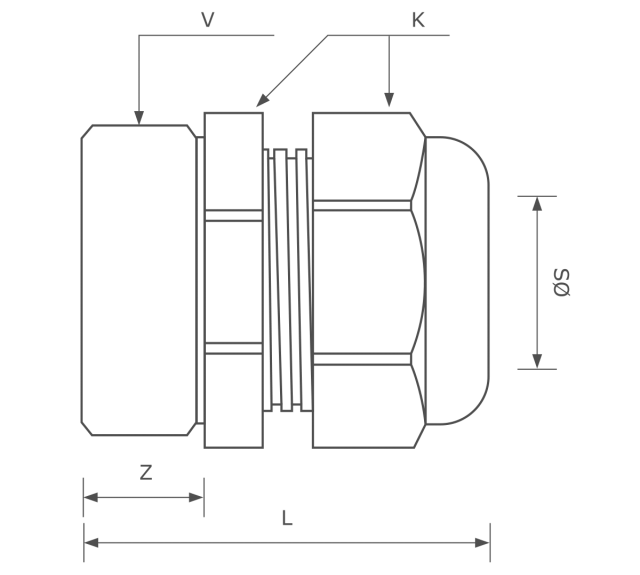

    Dimensions

    Dimensions


    V (thread size)ØS clamping range (for inline)K (Spanner size)Z (Length of thread)
    M 40 (for SGH 16.1 inline)19 - 28 mm SW 4612 mm
    M 40 oversize (for SGH 8.1 multiway and SGH 16.1 inline and multiway)22 - 32 mmSW 5313 mm

  • Available versions

    Available versions

    SGH 16.1 Multiway

    SGH 16.1 Multiway

  • With grommets for IP67 cable splitters

    With grommets for IP67 cable splitters

    The Syntax® proprietary multiway rubber grommets are directly fitted in the cable gland and guarantee optimal cable retention and IP67 watertight seal for outdoor use.

    Syntax SGH 16.1 grommet
  • The IP67 caps are supplied as a standard

    The IP67 caps are supplied as a standard

    Waterproof your connectors

    Waterproof your connectors

    The IP67 caps are supplied as a standard

    IP67 protection of the Syntax Gigamod Hybrid is fully ensured when all the connectors are mated or all the caps are fitted.

  • Overall dimensions

    Overall dimensions

  • Inline and Multiway female

    Inline and Multiway female

    Inline and Multiway female

    SGH 16.1

    SGH 16.1

    with standard backshell and cable gland.
    Dimensions in mm

  • Inline and Multiway male

    Inline and Multiway male

    Inline and Multiway male

    SGH 16.1

    SGH 16.1

    with standard backshell and cable gland.
    Dimensions in mm
